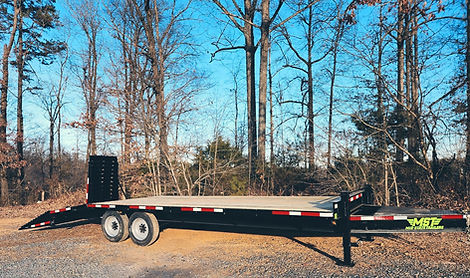

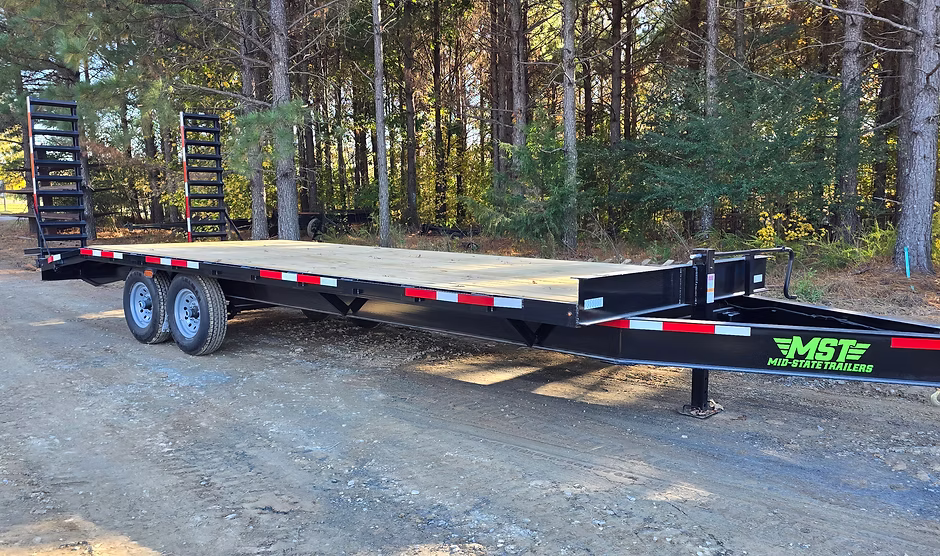

Mid State Deckover Trailers
$7,500
STANDARD SPECIFICATIONS:
GVWR: 15,000 lbs.
Empty Weight: lbs.
Maximum Payload: lbs.
w/adequate hitch load
Overall Length: 27′
Deck Length: 21′ (18′ flat w/ 3′ dovetail)
Overall Width: 102″
Deck Width: 96″
Deck Height: 35″
Loading Ramp: 5′ Cleated
Hitch: 2 5/16″ Adj. Ball Hitch
Hitch Height: Adjustable 22-32″
Tongue: Cold Form w/ Tool Tray
Axles: (2) Dexter 7,000# EZ Lube w/ electric brakes
Suspension: Multi leaf spring
Brakes: 12″ x 2″ electric self-adjust w/breakaway
Wheels: 16″ Silver Mod 8-Bolt
Tires: 235/80R15 12 ply
Jack Capacity: 12,000 lb. with drop foot
Main Frame: 10” Channel @ 15.3#
Crossmembers: Double 3″ Channel @7#
Decking: 2″ x 8″ Treated Pine
Tie Downs: Rub Rail w/ Stake Pockets
Lights: DOT Approved LED
Colors: Black
OPTIONS
EL – Extra Length
8KA – 8,000# Axles
GNB – Gooseneck w/adjustable 2 5/16″ ball hitch
ST – Spare Tire
TTB – Tongue Tool Box
6FT – 6′ Ramps
MR – Mega Ramps
